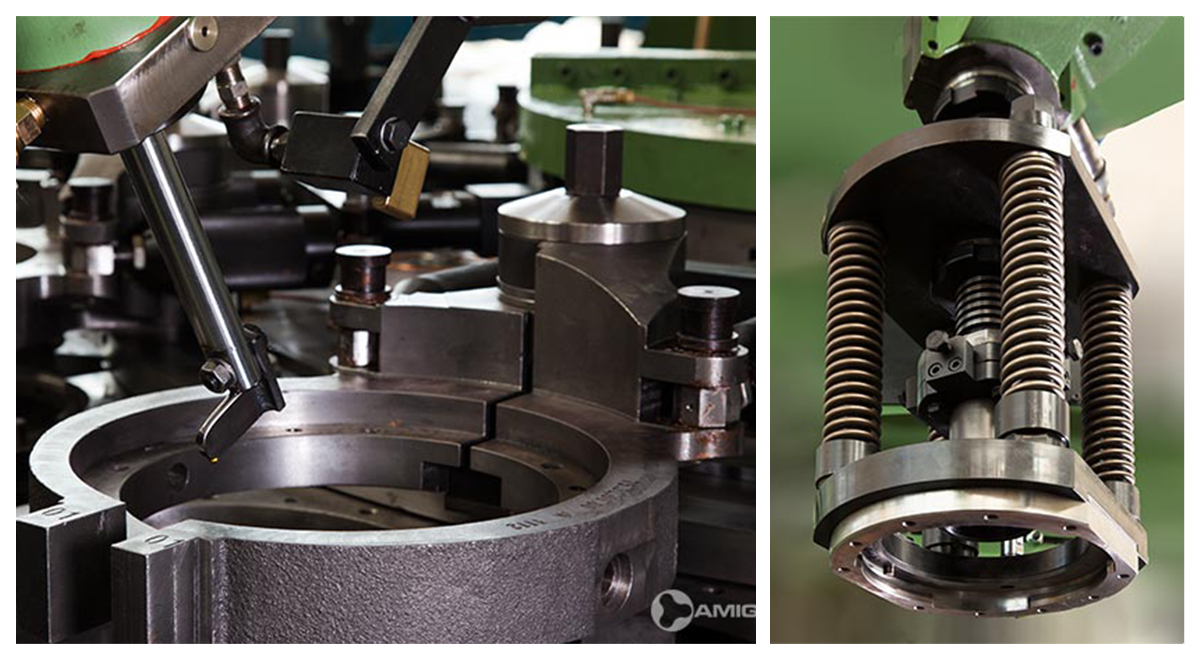

Single automatic turntable press-blow machine developed to produce glass jugs or similar glass containers available in the versions with 9 or 12 stations.

On the same table the container is processed through different steps including gob loading, pressing, spout shaping, blowing, cooling and unloading.

Optional functions, like mould conditioning, are available in free stations.

Pressing mechanism can be hydraulically or pneumatically driven while table rotation can be driven by Geneva wheel or water-cooled torque motor.





GENERAL MACHINE DATA

  PAS9 PAS12
NUMBER OF STATIONS 9 12
TABLE DRIVING SYSTEM Geneva Wheel or Torque Motor Torque Motor
OVERHALL DIMENSIONS (l x w x h) 5600 x 2600 x 4500 mm 5300 x 3300 x 4300 mm
WEIGHT 16000 Kg 26000 Kg
PRESSING MECHANISM Hydraulic/Pneumatic Hydraulic/Pneumatic
PRESSING FORCE 3,5 tons 3,5 tons
AIR PRESSURE (LOW/HIGH) 3/6 Bar 3/6 Bar
MAX. PRESSING STROKE 350mm 350mm
MOULD CENTER DIAMETER 1900mm 2200mm



JUGS CHARACTERISTICS

  MIN. MAX.
BODY DIAMETER 60mm 220mm
NECK-RING DIAMETER 40mm 180mm
HEIGHT 150mm 350mm
WEIGHT 300 gr 1500 gr



PRODUCTION SPEED

  PAS9 PAS12
MAX. PRODUCTION SPEED 15 pcs/min. 25 pcs/min.
