FLA20/S can produce all types of vials from 2R to 30R used on the market such as penicillin, insulin, screw neck and blow-back neck. Vials can be manufactured with tube diameters between 8mm and 30mm.

The machine is equipped with 20 stations with double upper chucks for a stronger tube gripping.

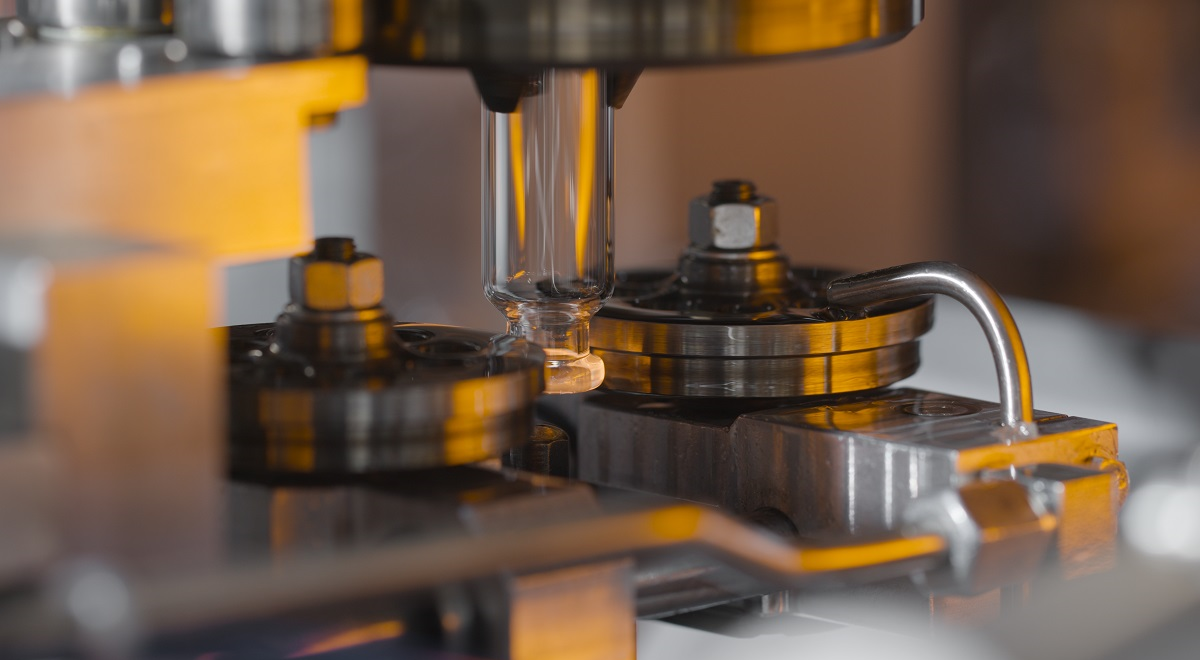

The vial forming is performed through two pre-forming stations with single roller for shoulders preparation and two servo-driven main forming stations with one plunger and two rollers for mouth finishing.

FLA20/S machine is equipped with forced lubrication system for all moving parts and forming tools.

Auxiliary equipment for FLA20/S machine are automatic tube loader and camera inspection system for dimensional control type OPTIVIAL.

Functions control and parameters setting are performed from touch panel integrated in separated control cabinet.

With a set of special modifications FLA20/S can be converted into a forming machine for syringe bodies, glass droppers and dental cartridges.

Machinery for the production of tubular glassware for the pharmaceutical industry as confirmed by the great number of machines installed worldwide.
