FLA18 is 18+9 stations forming machine working with index rotation, developed to produce all ISO DIN vials including penicillin, insulin, screw-neck and blow-back types. Vials can be manufactured with tube diameters between 8mm and 30mm.

Machine rotation is driven by water-cooled torque motor. Cooling operation is made with external chiller included in the supply.

The combination between 18 chucks of upper mouth forming turret and 9 chucks of lower bottom finishing turret allows to keep the maximum productivity even with one station out of service.

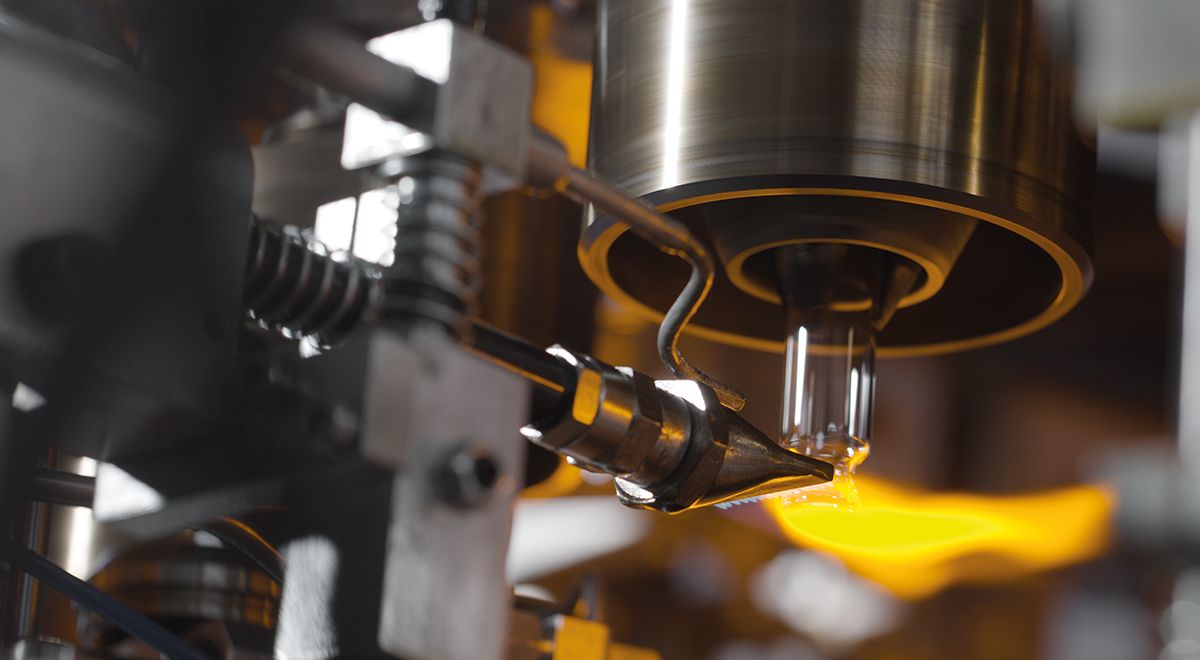

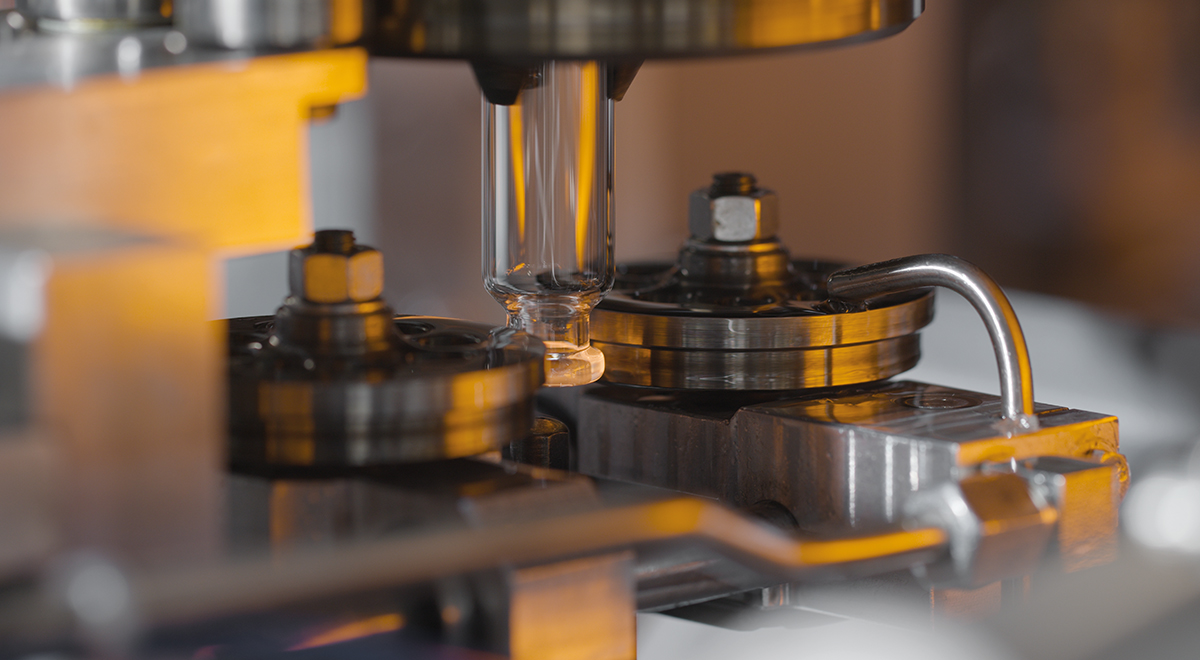

The vial forming is performed through three two servo-driven forming stations with one plunger and two rollers.

Lower turret of the machine includes 9 lower chucks with independent adjustment of rotation speed, air blowers for smokes removal driven by solenoid valves and bottom flattening device.

FLA18 machine can be equipped with camera inspection system type OPTIVIAL for dimensional control of finished vials.

Machinery for the production of tubular glassware for the pharmaceutical industry as confirmed by the great number of machines installed worldwide.
